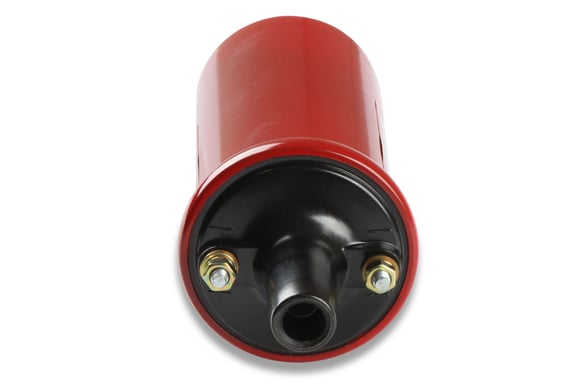

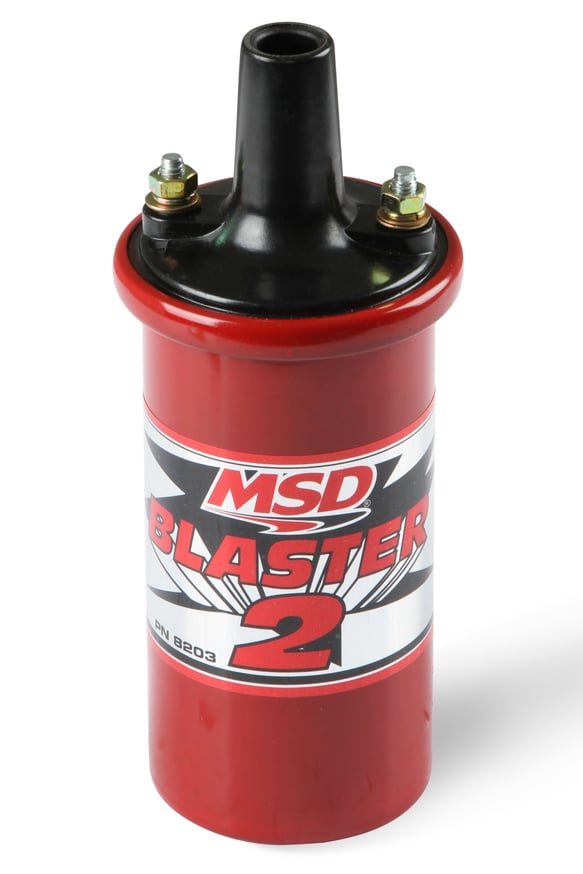

MSD 8203 Blaster 2 Ignition Coil with Ballast Resistor

Product Description
$59.95
Maximum quantity available reached.

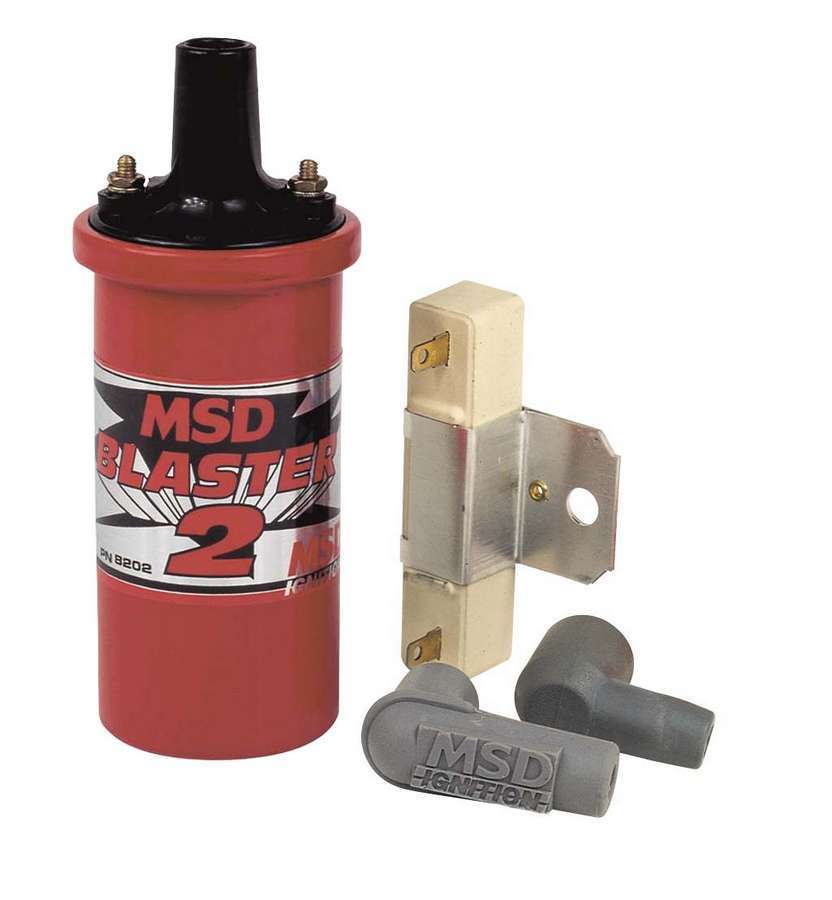

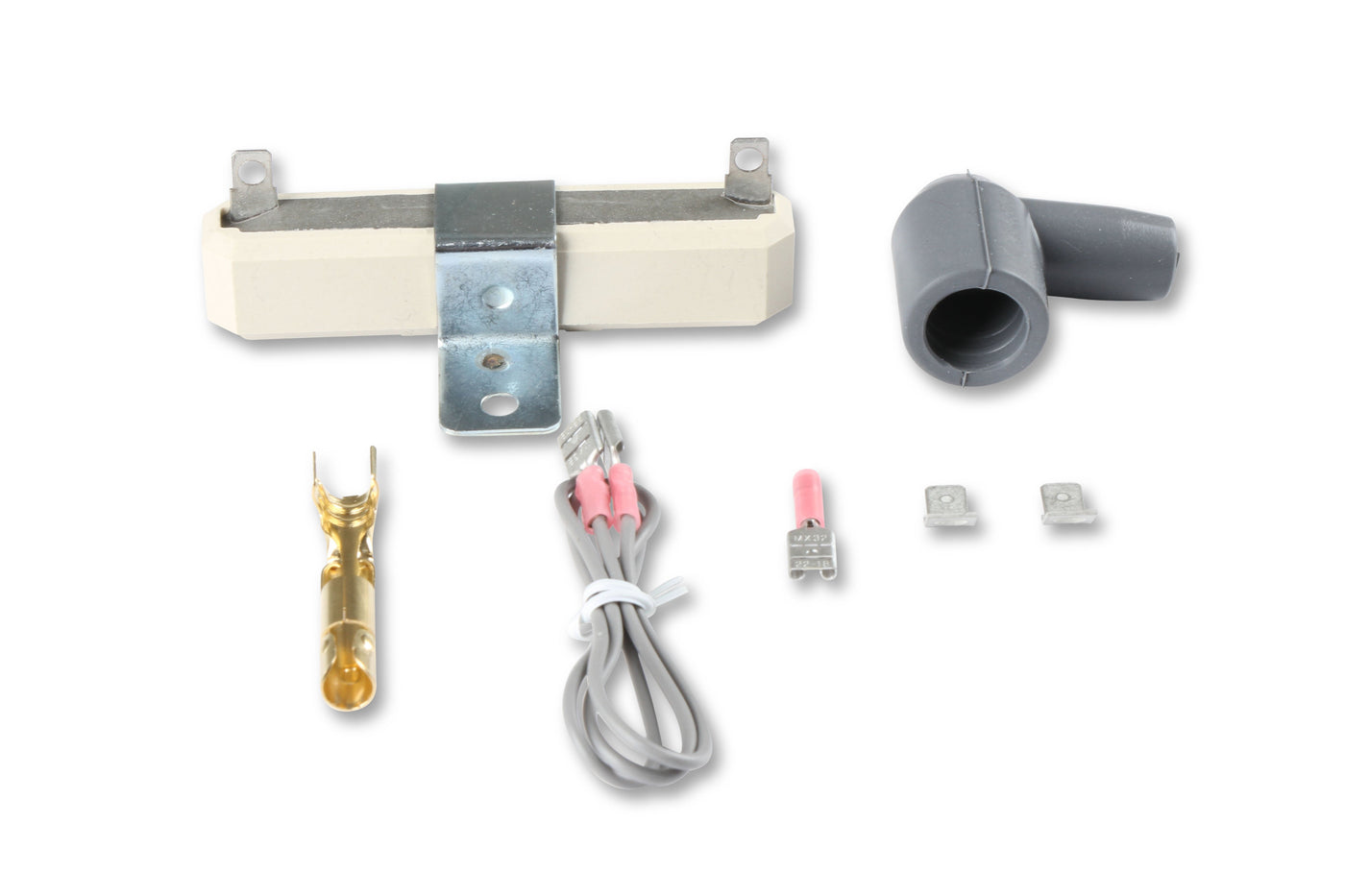

MSD designed this 8203 Blaster 2 Ignition Coil as an upgrade from a stock coil, or to compliment the performance of your MSD Blaster, 5, 6, as well as 7 ignitions! It is also an improved coil for electronic as well as points ignitions and includes a ballast resistor, two spark plug wire boots and terminals.

This Blaster Coil is designed for a maximum output of 45,000 volts, a significant improvement over stock ignition coils! Special 100:1 windings as well as lower primary resistance provide maximum voltage build-up. This coil is kept cool as well as securely held in an oil-filled metal canister. The Alkyd tower offers high dielectric properties as well as being less prone to carbon tracking.

The Blaster Coil is also designed to mount in most factory canister coil mounts. MSD recommends mounting this coil in an upright position.

MSD 8203 Blaster 2 Ignition Coil Features:

  • Maximum Voltage: 45,000 Volts
  • Inductance: 8.00 mH
  • Peak Current: 140 mA
  • Primary Resistance: .7 OHMs
  • Secondary Resistance: 4.5K OHMs
  • Spark Duration: 350 uS
  • Turns Ratio: 100:1
  • Coil Color: Red
  • Coil Shape: Round
  • Coil Style: Remote Mount
  • Coil Wire Attachment: Female/Socket
  • Coil Internal Construction: Oil-Filled
  • Ballast Resistor Included: Yes
  • Coil Wire Included: No
  • Mounting Bracket Included: No
  • Height: 6.000 in.
  • Diameter: 2.125 in.
  • Quantity: Sold individually
  • CARB E.O. Number: D-40-37

Street cruisers as well as Top Fuel dragsters trust MSD's ignition systems as the industry leader for over 40 years. MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.

Sku: MSD8203
Vendor: MSD IGNITION
